High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg

Detalhes do produto:

Lugar de origem:	China
Marca:	RUIJIA
Certificação:	CE
Número do modelo:	RJ

Informações detalhadas

Lugar de origem:

China

Marca:

RUIJIA

Certificação:

Número do modelo:

Tipo de sinal de saída:

Tipo analógico

Recurso:

baixa temperatura resistente

Material:

Aço inoxidável

Certificação:

RoHS

Personalizado:

Personalizado

Classificação IP:

IP65

Destacar:

High Light

Destacar:

50kg half-bridge load cell

micro load cell for scales

high-performance load cell with warranty

Informações de negociação

Quantidade de ordem mínima:

Preço:

USD1.5 ~2.5/piece

Detalhes da embalagem:

Embalagem de exportação padrão

Tempo de entrega:

5-8 dias úteis

Termos de pagamento:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte:

1000 peças/peças por mês

Descrição do produto

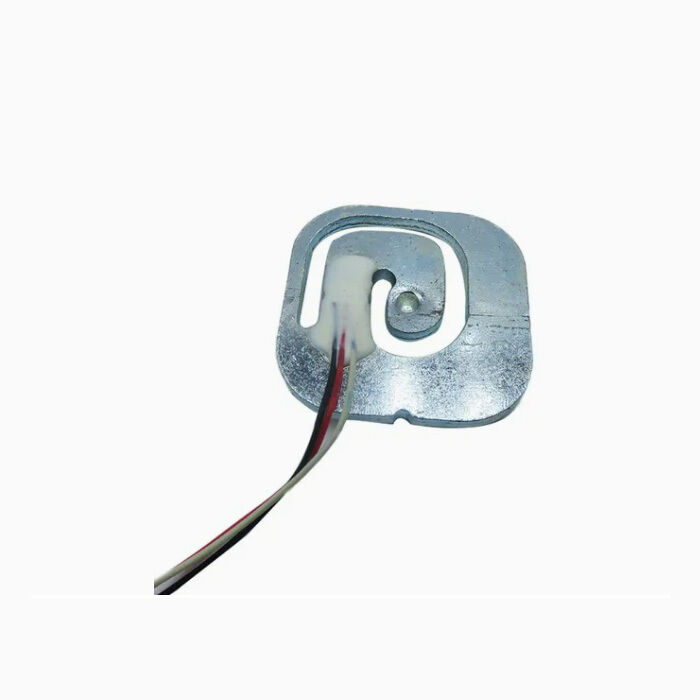

High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg

High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg 0

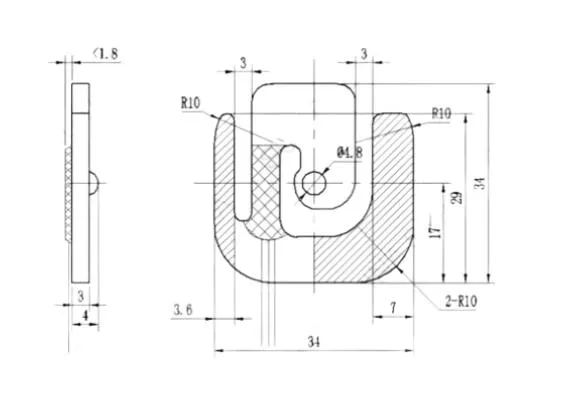

Product Size Drawing

Product Parameter List

capacity	Kg	50Kg
Rated Output	mv/v	1.0±0.2
Non-linearity	%F.S	0.3
Hysteresis	%F.S	0.3
Repeatability	%F.S	0.3
Creep	%F.S/3min	0.3
Temp.effect on zero	%F.S/10ºC	0.3
Temp.effect on span	%F.S/10ºC	0.3
Zero balance	mv/v	±0.2
Input impedance	Ω	1000±10
Output impedance	Ω	1000±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	3~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: White:E+ Black:E-
Connection	Signal: Red:S+

Company Information

High-Performance 50kg Half-Bridge Load Cell for Body Scales - Xg 2

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
