Spoke Weighing Pressure Sensor Round Cake Force Sensor

Detalhes do produto:

Lugar de origem:	China
Marca:	RUIJIA
Certificação:	CE
Número do modelo:	RJ

Informações detalhadas

Lugar de origem:

China

Marca:

RUIJIA

Certificação:

Número do modelo:

Tipo de sinal de saída:

Tipo analógico

Recurso:

baixa temperatura resistente

Processo de produção:

Ferida de fio normal

Material:

Aço inoxidável

Classificação IP:

IP65

Certificação:

RoHS

Destacar:

High Light

Destacar:

spoke weighing pressure sensor

round cake force sensor

spoke type load cell

Informações de negociação

Quantidade de ordem mínima:

Preço:

USD86 ~1000/piece

Detalhes da embalagem:

Embalagem de exportação padrão

Tempo de entrega:

5-8 dias úteis

Termos de pagamento:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte:

1000 peças/peças por mês

Descrição do produto

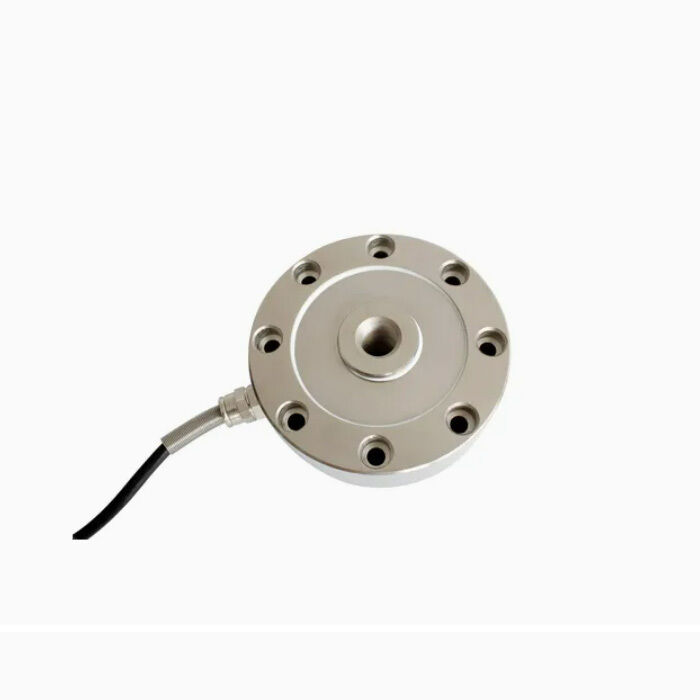

Spoke Weighing Pressure Sensor Round Cake Force Sensor

Spoke Weighing Pressure Sensor Round Cake Force Sensor 0

Load Cell Accessories
We can also provide peripheral supporting parts of the load cell, such as load cell display, load cell transmitter, load cell mounting bracket and other supporting parts
OEM customization
We can carry out OEM customized design and manufacture according to your ideas to achieve the functions and application scenarios you need.
Customized service
We have an excellent design team, which can provide customized design services according to the functions, precision and application you need.

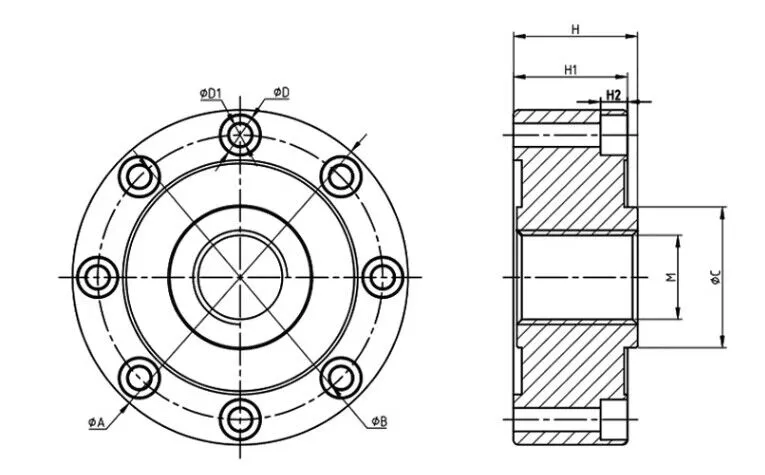

Product size drawing

capacity	ΦA	ΦB	ΦC	M	H	H1	H2	ΦD	ΦD1
30kg~1T	74	63	24	M16*1.5	34	30	7.2	8-Φ9	8-Φ6
1T~8T	105	89	32	M16*1.5	37	34	8	8-Φ11	8-Φ7
10T~20T	120.6	101.8	39	M32*1.5	48	41	8.5	8-Φ14	8-Φ9
30T	141	116.8	50.4	M40*1.5	57.2	50.8	11	8-Φ18	8-Φ11
50T~60T	153	130	70	M40*1.5	58	51	16	16-Φ17	16-Φ11
100T	200	162	76	M60*2	83	70	18	16-Φ20	16-Φ13
150T~200T	250	210	110	M80*3	100	90	20	16-Φ28	16-Φ17
250T	280	230	120	M80*3	90	90	20	16-Φ30	16-Φ17
300T~450T	360	300	190	M100*3	110	110	28	20-Φ40	20-Φ25

Product parameter list

capacity	T	30~450T
Rated Output	mv/v	2.0±0.2
Non-linearity	%F.S	0.03
Hysteresis	%F.S	0.03
Repeatability	%F.S	0.03
Creep	%F.S/3min	0.03
Temp.effect on zero	%F.S/10ºC	0.03
Temp.effect on span	%F.S/10ºC	0.03
Zero balance	mv/v	±0.03
Input impedance	Ω	700±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	5~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-

Company Information

Spoke Weighing Pressure Sensor Round Cake Force Sensor 2

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
