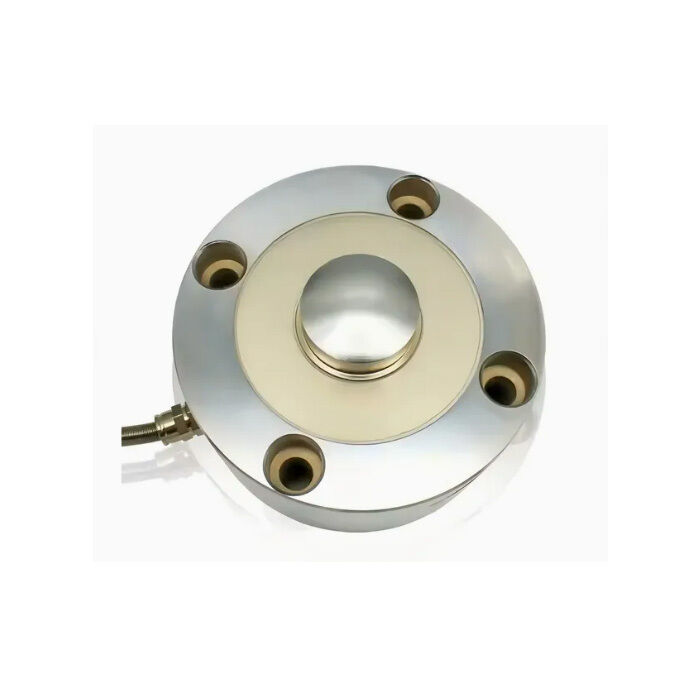

lat Membrane Box Load Cell 300t 500t for Scale

Detalhes do produto:

Lugar de origem:	China
Marca:	RUIJIA
Certificação:	CE
Número do modelo:	RJ

Informações detalhadas

Lugar de origem:

China

Marca:

RUIJIA

Certificação:

Número do modelo:

Tipo de exibição:

Indicador digital

Classificação IP:

IP65

Personalizado:

Personalizado

Material:

Liga de aço

Faixa:

50-500T

Impedância:

1400Ω

Destacar:

High Light

Destacar:

flat membrane load cell 300t

box load cell 500t for scale

spoke type load cell with warranty

Informações de negociação

Quantidade de ordem mínima:

Preço:

USD110 ~157/piece

Detalhes da embalagem:

Embalagem de exportação padrão

Tempo de entrega:

5-8 dias úteis

Termos de pagamento:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte:

1000 peças/peças por mês

Descrição do produto

lat Membrane Box Load Cell 300t 500t for Scale

Features:
· High stability
· Low structural height
· High comprehensive accuracy
· Stable anti-interference signal
· Nickel-plated high-quality alloy steel
· Widely used in weighing equipment such as electronic belt scales, packaging scales, filling scales, etc. As well as in the field of automation equipment and testing.

CAPACITY	KN	50-500T
Rated Output	mV/V	2.0±10%
Zero Balance	%F.S.	±1
Non-linearity	%F.S.	0.05
Hysteresis	%F.S.	0.05
Non-Repeatability	%F.S.	0.03
Creep (30min)	%F.S.	0.03
Temp. Effect On Output	%F.S./10ºC	0.03
Temp. Effect On Zero	%F.S./10ºC	0.05
Response frequency	Hz	10k
Material		42CrMoA
impedance	Ω	700/1400
Insulation	MΩ/100V DC	≥5000
Recommended Excitation	V	5-15
Operating Temp. Range	ºC	-20-80
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Cable Size	m	Φ5*5m
Cable ultimate tension	N	98
TEDS		Optional

lat Membrane Box Load Cell 300t 500t for Scale 0

lat Membrane Box Load Cell 300t 500t for Scale 1

Company Information

lat Membrane Box Load Cell 300t 500t for Scale 2

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
