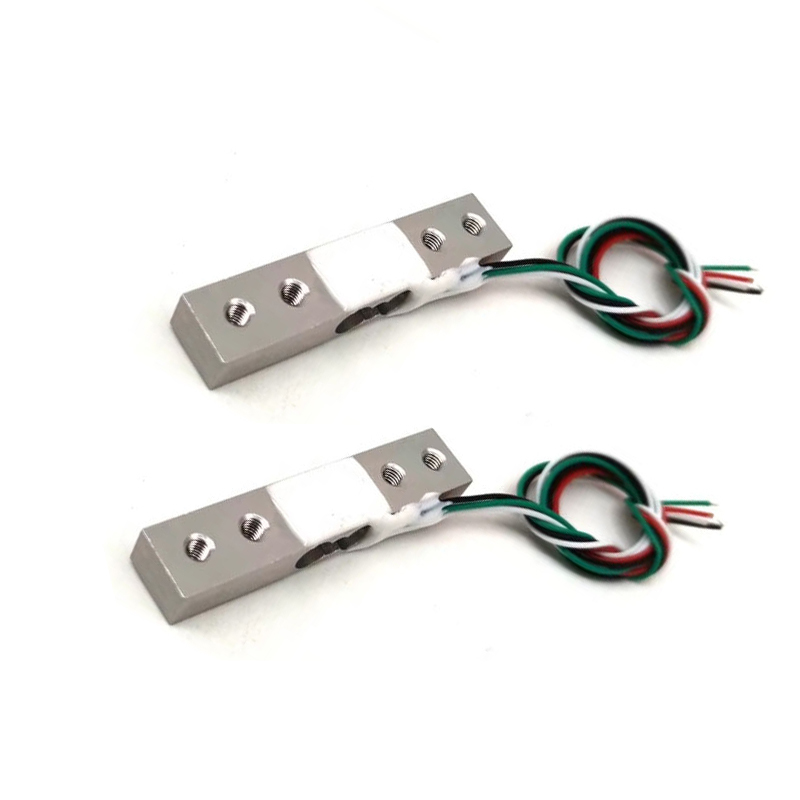

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales

Detalhes do produto:

Lugar de origem:	China
Marca:	RJ
Certificação:	CE/ROSE
Número do modelo:	RJ

Informações detalhadas

Lugar de origem:

China

Marca:

Certificação:

CE/ROSE

Número do modelo:

Características:

Sensor de liga de alumínio

Teoria:

Sensor de estensímetro

Capacidade:

300g, 500g, 750g, 1kg, 2kg, 3kg

Materiais:

Célula de carga de liga de alumínio

Tamanho:

45*9,3*6 mm

Output nominal:

00,7 ± 0,1 mV/V

Destacar:

High Light

Destacar:

aluminum alloy load cell sensor

300g-3kg load cell sensor

electronic scale load cell sensor

Informações de negociação

Quantidade de ordem mínima:

Preço:

$3-10

Detalhes da embalagem:

caixa ou caixa de madeira

Tempo de entrega:

5-8 dias úteis

Termos de pagamento:

L/C, D/A, D/P, T/T, Western Union

Habilidade da fonte:

2000PC/Month

Descrição do produto

Electronic scale weight sensor load cell 300g 500g 750g 1kg 2kg 3kg Load cell for coffee scales

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 0

Model	RJ
Capacity	300g, 500g,750g, 1kg, 2kg, 3kg
Comprehensive Error	0.05 % F.S
Output sensitivity	300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V, 1kg-3kg: 1.0±0.15 MV/V
Non-linearity	0.05 (%F.S.)
Repeatability	0.05 (%F.S.)
Hysteresis	0.05 (%F.S.)
Creep	0.1 [(3 min)%F.S.]
Zero Output	± 0.1 m V/V
Temp. Effect on Zero	0.2(%F.S/10℃)
Temp. Effect on Span	0.05(%F.S 10℃)
Input Resistance	1000 ± 10 Ω
Output Resistance	1050 ± 100 Ω
Insulation Resistance	≥ 2000 MΩ
Excitation Voltage	3~10Vdc
Operating Temperature range	-10~+40℃
Four corner error	± 0.1% F.S
Safe overload	120% F.S
Ultimate Overload	150% F.S
Cable length	Φ0.6 x 110 mm
Wiring	Excitation +: Red, Excitation-: Black Signal+: Green, Signal- : White
Application	Jewelry scale, small weight scale, kitchen scale, force test

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 1

Packing & Transport

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 2

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
